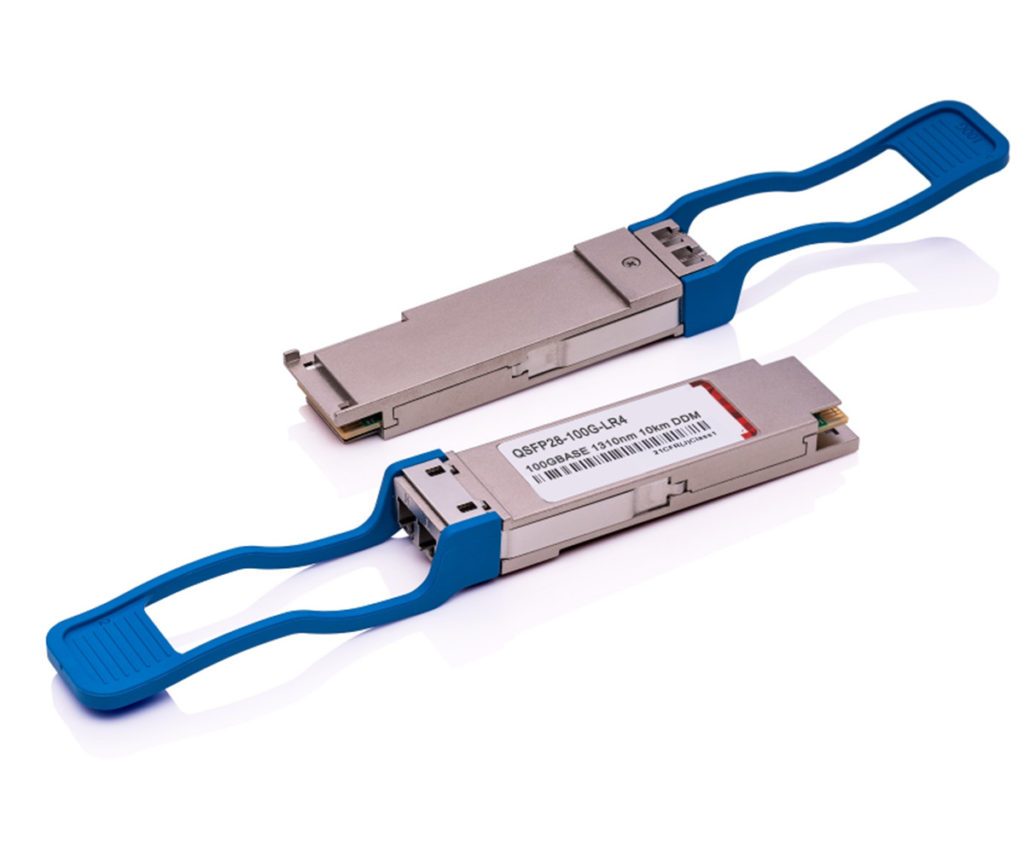

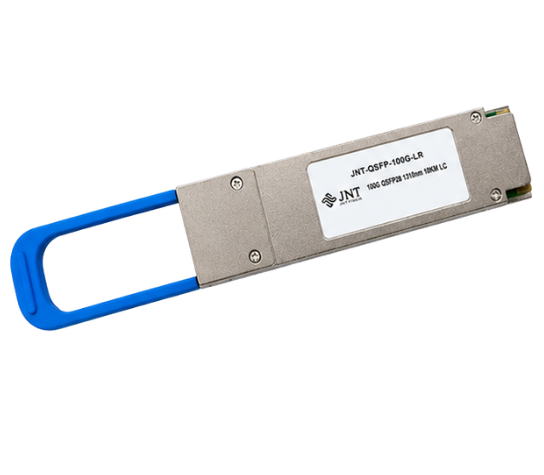

100G QSFP28 Module
4 x 28Gbps transmission
Applications
- 100GBASE-SR4 (MPO-8)
- 100GBASE-LR4 (LC)
- 100GBASE-ER4 (LC)
Quad Small Form Pluggable 28Gbps (QSFP28) Transceiver Modules available with:
- Active Optical Cable with QSFP pre-terminated lengths
- Active Optical Cable with QSFP28 and QSFP pre-terminated lengths
- MPO-8 Fiber QSFP Modules
- Dual Fiber Strands QSFP+ Modules
Supports various wavelengths such as 850nm, 1310nm , CWDM and distances up to 25km
Ordering Information
Temperature Option : Standard Temperature – 0°C to +70°C ; Industrial temperature – -5°C to +85°C
Dual Fiber QSFP28 Modules
Bi-Directional Fiber QSFP28 Modules
Dual Fiber QSFP28 Modules
Standard
Industrial
Standard
Standard
| Data Rate | Part Number | Type | Wavelength | Distance (km) | TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) |
|---|---|---|---|---|---|---|---|
| QSFP-100G-PSR4 | MM | 850nm | 0.1 | -6 to 2.4 | -20 to -5.2 | 14 | |
| QSFP-100G-PLR4L | SM | 1310nm | 2 | -5.5 to 2.0 | -10.2 to 2.0 | 4.7 | |
| QSFP-100G-CLR4L | SM | CWDM | 2 | -4.0 to 2.5 | -10 to 2.5 | 6.0 | |
| QSFP-100G-CLR4 | SM | CWDM | 10 | -4.0 to 2.5 | -25 to -11.5 | 21 | |
| 100Gb/s | QSFP-100G-LR4 | SM | LWDM | 10 | -4.3 to 4.5 | -12 to -8.6 | 7.7 |
| QSFP-100G-LR4F | SM | LWDM FEC | 10 | -0.6 to 4.0 | -11.6 to -8.4 | 11 | |
| QSFP-100G-ER4 | SM | LWDM | 40 | -2.5 to 6.5 | -20.5 to -3.5 | 18 | |
| QSFP-100G-ER4F | SM | LWDM FEC | 30(Non-FEC)/40(FEC) | -2.5 to 6.5 | -20.5 to -3.5 | 18 | |
| QSFP-100G-ZR4 | SM | LWDM | 80 | 3.0 to 7.0 | -31 to 4.5 | 34 |
Industrial
Industrial
| Data Rate | Part Number | Type | Wavelength | Length (m) | TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) |
|---|---|---|---|---|---|---|---|
| 100Gb/s | QSFP-100G-ELR4H | SM | LWDM | 20 | -6.5 to 2.5 | -13 to -2.5 | 6.5 |
| QSFP-100G-ER4H | SM | LWDM | 40 | -2.5 to 6.5 | -20.5 to -3.5 | 18 |
Bi-Directional Fiber QSFP28 Modules
Standard
Industrial
Standard
Standard
| Data Rate | Part Number | Type | Wavelength | Distance (km) | TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) | |
|---|---|---|---|---|---|---|---|---|
| QSFP-100G-CLR4L-S | SM | CWDM | 2 | -6.5 to 2.5 | -11.5 to 2.5 | 5 |  |
|
| 100Gb/s | QSFP-100G-LR11 | SM | 1271 TX 1331 RX | 20 | -1.4 to 4.5 | -7.7 to 4.5 | 6.3 | |
| QSFP-100G-LR12 | SM | 1331 TX 1271 RX | 20 | -1.4 to 4.5 | -7.7 to 4.5 | 6.3 |
Industrial
Industrial
| Data Rate | Part Number | Type | Wavelength | Distance (km) | TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) |
|---|---|---|---|---|---|---|---|
| 100Gb/s | QSFP-100G-LR21H | SM | 1273.55-1286.66 TX 1295.56-1309.14 RX | 20 | -4.3 to 4.5 | -14.5 to 5.5 | 10.2 |
| QSFP-100G-LR22H | SM | 1295.56-1309.14 TX 1273.55-1286.66 RX | 20 | -4.3 to 4.5 | -14.5 to 5.5 | 10.2 |
