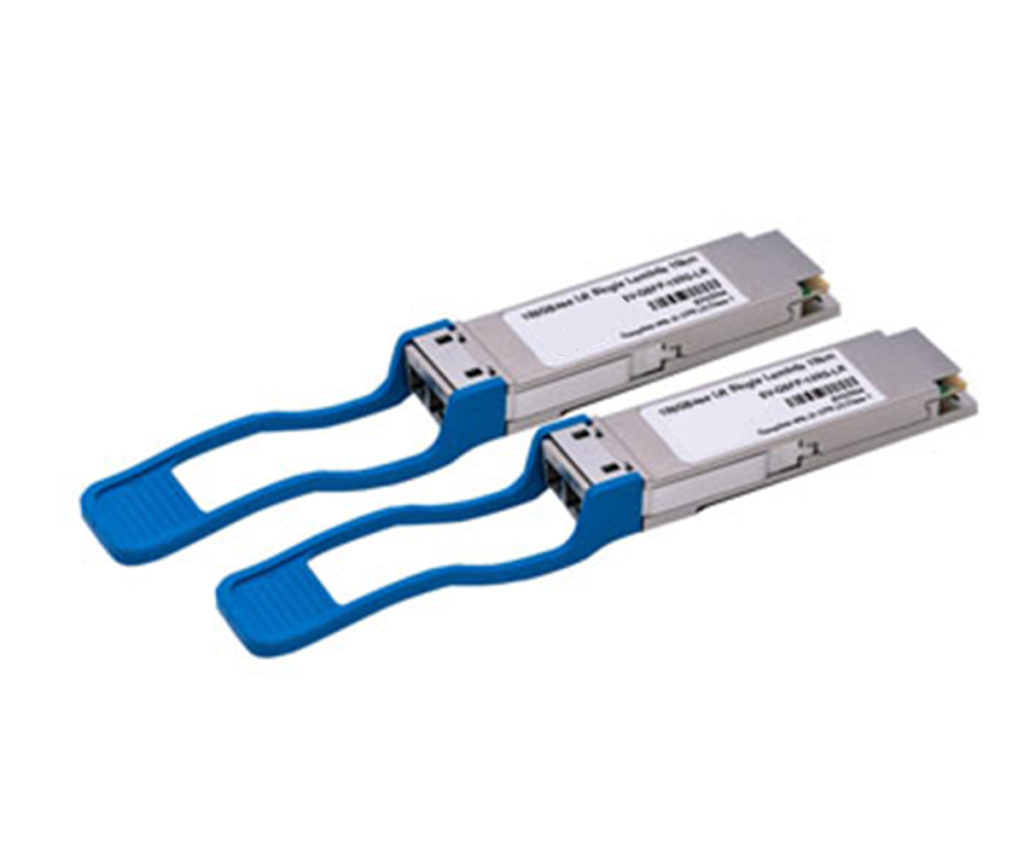

100G QSFP28 Single Lambda

2 x 50Gbps transmission

Applications

Compact Quad Small Form Pluggable (QSFP) 100G Single Lamda Transceiver Module. Available options:

2 x 50Gbps DR
2 x 50Gbps FR
2 x 50Gbps LR
2 x 50Gbps CLR

Supports applications such as:

100G Single Lamda breakout connection to 400G
Data Centers
Cloud Networks

Connector type: LC

Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA

Ordering Information

Temperature Option : Standard Temperature – 0°C to +70°C

100G Single Lambda

CWDM Single Lambda Modules

DWDM Single Lambda Modules

100G Single Lambda

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
100Gb/s	QSFP-100G-SR1	SM	850nm	0.1	3 to 7	-31 to 4.5	34
100Gb/s	QSFP-100G-DR	SM	1310nm	0.5	-2.9 to 4	-5.9 to 4	4.5
	QSFP-100G-FR	SM	1310nm	2	-2.4 to 4	-6.4 to 4.5	4.0
	QSFP-100G-LR	SM	1310nm	10	-1.4 to 4.5	-7.7 to 4.5	6.3

CWDM Single Lambda Modules

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
100Gb/s	QSFP-100G-LRC##	SM	1271nm ~ 1331nm	10	-1.4 to 4.5	-7.7 to 4.5	3.1

## denotes wavelength range from 1270~1610nm.

27 = 1270nm, 29=1290nm, 31=1310nm, 33=1330nm, 35=1350nm, 37=1370nm, 39=1390nm, 41=1410nm,
43=1430nm, 45=1450nm, 47=1470nm, 49=1490nm, 51=1510nm, 53=1530nm, 55=1550nm,57=1570nm,
59=1590nm, 61=1610nm

DWDM Single Lambda Modules

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
100Gb/s	QSFP-100G-ZXD8##	SM	DWDM Wavelength	80	-2.4 to 4	-6.4 to 4.5	4.0
## ITU Channel	Wavelength		Frequency (THz)	## ITU Channel	Wavelength		Frequency (THz)	## ITU Channel	Wavelength	Frequency (THz)
17	1563.86		191.7	17	1563.86		191.7	17.5	1563.45	191.75
18	1563.05		191.8	18	1563.05		191.8	18.5	1562.64	191.85
19	1562.23		191.9	19	1562.23		191.9	19.5	1561.83	191.95
20	1561.42		192	20	1561.42		192	20.5	1561.01	192.05
21	1560.61		192.1	21	1560.61		192.1	21.5	1560.2	192.15
22	1559.79		192.2	22	1559.79		192.2	22.5	1559.39	192.25
23	1558.98		192.3	23	1558.98		192.3	23.5	1558.58	192.35
24	1558.17		192.4	24	1558.17		192.4	24.5	1557.77	192.45
25	1557.36		192.5	25	1557.36		192.5	25.5	1556.96	192.55
26	1556.55		192.6	26	1556.55		192.6	26.5	1556.15	192.65
27	1555.75		192.7	27	1555.75		192.7	27.5	1555.34	192.75
28	1554.94		192.8	28	1554.94		192.8	28.5	1554.54	192.85
29	1554.13		192.9	29	1554.13		192.9	29.5	1553.73	192.95
30	1553.33		193	30	1553.33		193	30.5	1552.93	193.05
31	1552.52		193.1	31	1552.52		193.1	31.5	1552.12	193.15
32	1551.72		193.2	32	1551.72		193.2	32.5	1551.32	193.25
33	1550.92		193.3	33	1550.92		193.3	33.5	1550.52	193.35
34	1550.12		193.4	34	1550.12		193.4	34.5	1549.72	193.45
35	1549.32		193.5	35	1549.32		193.5	35.5	1548.91	193.55
36	1548.51		193.6	36	1548.51		193.6	36.5	1548.11	193.65
37	1547.72		193.7	37	1547.72		193.7	37.5	1547.32	193.75
38	1546.92		193.8	38	1546.92		193.8	38.5	1546.52	193.85
39	1546.12		193.9	39	1546.12		193.9	39.5	1545.72	193.95
40	1545.32		194	40	1545.32		194	40.5	1544.92	194.05
41	1544.53		194.1	41	1544.53		194.1	41.5	1544.13	194.15
42	1543.73		194.2	42	1543.73		194.2	42.5	1543.33	194.25
43	1542.94		194.3	43	1542.94		194.3	43.5	1542.54	194.35
44	1542.14		194.4	44	1542.14		194.4	44.5	1541.75	194.45
45	1541.35		194.5	45	1541.35		194.5	45.5	1540.95	194.55
46	1540.56		194.6	46	1540.56		194.6	46.5	1540.16	194.65
47	1539.77		194.7	47	1539.77		194.7	47.5	1539.37	194.75
48	1538.98		194.8	48	1538.98		194.8	48.5	1538.58	194.85
49	1538.19		194.9	49	1538.19		194.9	49.5	1537.79	194.95
50	1537.4		195	50	1537.4		195	50.5	1537	195.05
51	1536.61		195.1	51	1536.61		195.1	51.5	1536.22	195.15
52	1535.82		195.2	52	1535.82		195.2	52.5	1535.43	195.25
53	1535.04		195.3	53	1535.04		195.3	53.5	1534.64	195.35
54	1534.25		195.4	54	1534.25		195.4	54.5	1533.86	195.45
55	1533.47		195.5	55	1533.47		195.5	55.5	1533.07	195.55
56	1532.68		195.6	56	1532.68		195.6	56.5	1532.29	195.65
57	1531.9		195.7	57	1531.9		195.7	57.5	1531.51	195.75
58	1531.12		195.8	58	1531.12		195.8	58.5	1530.72	195.85
59	1530.33		195.9	59	1530.33		195.9	59.5	1529.94	195.95
60	1529.55		196	60	1529.55		196	60.5	1529.16	196.05
61	1528.77		196.1	61	1528.77		196.1
