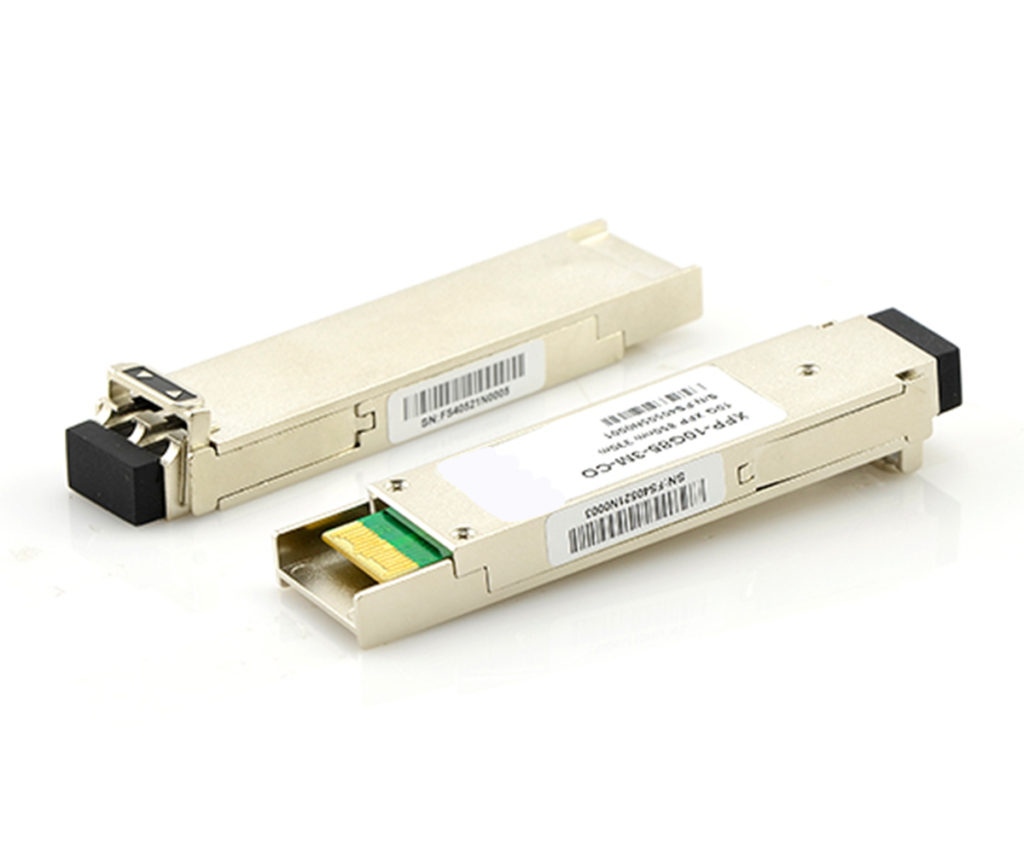

XFP

Small Form Pluggable (XFP) Transceiver Modules available with:

Supports various wavelengths such as 850nm, 1310nm, 1550nm, CWDM and DWDM, and distances up to 100km for dual fiber, and 60km for single fiber
Compatible to major equipment vendors (Coding)
Digital Diagnostic Monitoring (DDM) for optical monitoring capability compliant with SFF-8472
Available with low power option or GREEN power
Support s Normal Operating Temperature 0 to +70 degree Celsius
2 years warranty with optional extended warranty up to 5 years

Temperature Option : Standard Temperature – 0°C to +70°C

10G XFP-Dual Fiber

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	XFP-SR	MM	850nm	0.3	-6 to -1	-10 to 0.5	1
	XFP-ESR	MM	1300nm	2	-6 to -1	-15 to 0.5	6
	XFP-LR1	SM	1310nm	10	-6 to 0.5	-15 to 0.5	9
	XFP-LR1(LP)*	SM	1310nm	10	-6 to -1	-15 to 0.5	9
9.95Gb/s to	XFP-LR2	SM	1310nm	20	-5 to 1	-15 to 0.5	10
11.1Gb/s	XFP-ER4	SM	1550nm	40	-1 to 4	-15.6 to 0.5	15.5
	XFP-ER4 (LP)*	SM	1550nm	40	-1 to 4	-15.6 to 0.5	15.5
	XFP-ZR8	SM	1550nm	80	0 to 5	-24 to -6	24
	XFP-ZR10	SM	1550nm	100	1 to 5	-25 to -6	26

*LP denotes low power consumption.
