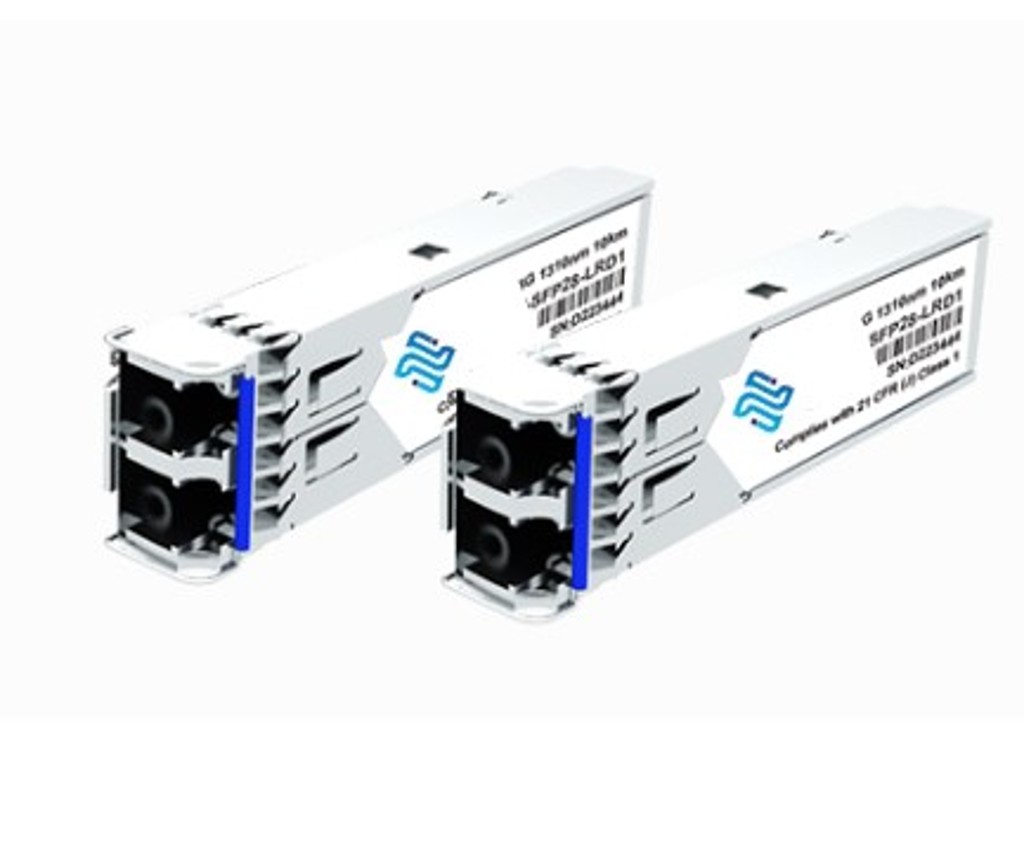

1G SFP

1Gbps transmission

Applications

Ethernet (100M/ 1G)
ESCON/ FICON
1G Fiber channel
Multi-rate 100Mbps to 1.25Gbps

Small Form Pluggable (SFP) Transceiver Modules available with:

Copper SFP Modules (10/100/1000 and 1000)
Dual Fiber Strands SFP Modules
CWDM Dual Fiber Strands SFP Modules
C and L Band DWDM Dual Fiber Strands SFP Modules
Single Fiber Strand (Bi-Di) SFP Modules

Supports various wavelengths such as 850nm, 1300nm, 1310nm, 1550nm, CWDM and DWDM, and distances up to 160km for 100Mbps and 120km for 1Gbps
Digital Diagnostic Monitoring (DDM) for optical monitoring capability compliant with SFF-8472 (Internal/ External Calibration)
Supports Normal Operating Temperature 0 to +70 or Industrial Operating Temperature -40 to +85 degree Celsius
Compatible to major equipment vendors (Coding)
2 years warranty with optional extended warranty up to 5 years

Ordering Information

Temperature Option : Standard temperature – 0°C to +70°C; Industrial temperature – -40°C to +85°C

Copper SFP Modules

Dual Fiber Strands SFP Modules

CWDM Dual Fiber Strands SFP Modules

C and L band DWDM Dual Fiber Strands SFP Modules

Single Fiber Strand SFP Modules

Copper SFP Modules

Standard

Industrial

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	SFP-T1A			0.1
10/100/1000Mb/s	SFP-T1B			0.1
	SFP-T1C			0.1
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-T2A			0.1
1000Mb/s	SFP-T2B			0.1
	SFP-T2C			0.1

Industrial

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	SFP-T1AH			0.1
10/100/1000Mb/s	SFP-T1BH			0.1
	SFP-T1CH			0.1
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-T2AH			0.1
1000Mb/s	SFP-T2BH			0.1
	SFP-T2CH			0.1

Dual Fiber Strands SFP Modules

Standard

Industrial

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	SFP-OC3M8D	MM	850nm	2	-9 to -3	-24 to -6	12
	SFP-OC3MD	MM	1300nm	2	-20 to -14	-28 to -8	5
100Mb/s	SFP-OC3SD2	SM	1310nm	20	-15 to -8	-29 to -8	14
(FE / STM-1 /	SFP-OC3SD4	SM	1310nm	40	-7 to -2	-32 to -10	25
OC-3)	SFP-OC3SD8	SM	1550nm	80	-5 to 0	-33 to -10	28
	SFP-OC3SD12	SM	1550nm	120	-2 to 3	-34 to -10	32
	SFP-OC3SD16	SM	1550nm	160	1 to 5	-37 to -10	36
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-OC12SD2	SM	1310nm	20	-15 to -8	-28 to -8	13
622 Mb/s	SFP-OC12SD4	SM	1310nm	40	-5 to 0	-28 to -8	23
(STM-4 / OC-	SFP-OC12SD8	SM	1550nm	80	-3 to 2	-28 to -8	25
12)	SFP-OC12SD12	SM	1550nm	120	0 to 5	-31 to -8	31
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-SXD	MM	850nm	0.22	-9 to -3	-17 to 0	5
	SFP-ESXD	MM	1300nm	2	-5 to 0	-20 to 0	15
	SFP-LXD1	SM	1310nm	10	-9 to -3	-20 to -3	11
1.25 Gb/s	SFP-LXD2	SM	1310nm	20	-9 to -3	-20 to -3	11
(Gbe / FC)	SFP-LXD4	SM	1310nm	40	-5 to 0	-24 to -1	19
	SFP-ZXD6	SM	1550nm	60	0 to 5	-26 to -3	26
	SFP-ZXD8	SM	1550nm	80	0 to 5	-26 to -3	26
	SFP-ZXD12	SM	1550nm	120	0 to 5	-31 to -10	31
	SFP-ZXD16	SM	1550nm	160	2 to 6	-34 to -10	36
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-2GSXD	MM	850nm	0.3	-10 to -3	-18 to -3	5
	SFP-2GLXD	SM	1310nm	2	-9 to -3	-18 to -3	9
Multi-rate	SFP-2GLXD1	SM	1310nm	10	-5 to 0	-19 to 0	14
2.125 Gbps/s to	SFP-2GLXD2	SM	1310nm	20	-5 to 0	-19 to 0	14
2.7 Gb/s	SFP-2GLXD4	SM	1310nm	40	-2 to 3	-19 to 0	17
	SFP-2GZXD4	SM	1550nm	40	-2 to 3	-19 to 0	17
	SFP-2GZXD8	SM	1550nm	80	0 to 5	-28 to -6	28
	SFP-2GZXD12	SM	1550nm	120	1 to 6	-30 to -10	31
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-4GSXD	MM	850nm	0.55	-9 to -2.5	-16 to 0	4
Multi-rate	SFP-4GLXD	SM	1310nm	2	-6 to -1	-18 to 0.5	12
100Mb/s to	SFP-4GLXD1	SM	1310nm	10	-6 to -1	-18 to 0.5	12
4.25Gb/s	SFP-4GLXD2	SM	1310nm	20	-6 to -1	-18 to 0.5	12
	SFP-4GLXD4	SM	1310nm	40	-1 to 4	-18 to 0.5	17

Industrial

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	SFP-OC3M8DH	MM	850nm	2	-9 to -3	-24 to -6	12
	SFP-OC3MDH	MM	1310nm	2	-20 to -14	-28 to -8	5
100Mb/s	SFP-OC3SD2H	SM	1310nm	20	-15 to -8	-29 to -8	14
(FE / STM-1 /	SFP-OC3SD4H	SM	1310nm	40	-7 to -2	-32 to -10	25
OC-3)	SFP-OC3SD8H	SM	1550nm	80	-5 to 0	-33 to -10	28
	SFP-OC3SD12H	SM	1550nm	120	-2 to 3	-34 to -10	32
	SFP-OC3SD16H	SM	1550nm	160	1 to 5	-37 to -10	36
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-OC12SD2H	SM	1310nm	20	-15 to -8	-28 to -8	13
622 Mb/s	SFP-OC12SD4H	SM	1310nm	40	-5 to 0	-28 to -8	23
(STM-4 / OC-	SFP-OC12SD8H	SM	1550nm	80	-3 to 2	-28 to -8	25
12)	SFP-OC12SD12H	SM	1550nm	120	0 to 5	-31 to -8	31
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-SXDH	MM	850nm	0.22	-9 to -3	-17 to 0	5
	SFP-ESXDH	MM	1300nm	2	-5 to 0	-20 to 0	15
	SFP-LXD1H	SM	1310nm	10	-9 to -3	-20 to -3	11
1.25 Gb/s	SFP-LXD2H	SM	1310nm	20	-9 to -3	-20 to -3	11
(Gbe / FC)	SFP-LXD4H	SM	1310nm	40	-5 to 0	-24 to -1	19
	SFP-ZXD6H	SM	1550nm	60	0 to 5	-26 to -3	26
	SFP-ZXD8H	SM	1550nm	80	0 to 5	-26 to -3	26
	SFP-ZXD12H	SM	1550nm	120	0 to 5	-31 to -10	31
	SFP-ZXD16H	SM	1550nm	160	2 to 6	-34 to -10	36
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-2GSXDH	MM	850nm	0.3	-10 to -3	-18 to -3	5
	SFP-2GLXDH	SM	1310nm	2	-9 to -3	-18 to -3	9
Multi-rate	SFP-2GLXD1H	SM	1310nm	10	-5 to 0	-19 to 0	14
2.125 Gbps/s to	SFP-2GLXD2H	SM	1310nm	20	-5 to 0	-19 to 0	14
2.7 Gb/s	SFP-2GLXD4H	SM	1310nm	40	-2 to 3	-19 to 0	17
	SFP-2GZXD4H	SM	1550nm	40	-2 to 3	-19 to 0	17
	SFP-2GZXD8H	SM	1550nm	80	0 to 5	-28 to -6	28
	SFP-2GZXD12H	SM	1550nm	120	1 to 6	-30 to -6	31
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-4GSXDH	MM	850nm	0.55	-9 to -2.5	-16 to 0	4
Multi-rate	SFP-4GLXDH	SM	1310nm	2	-6 to -1	-18 to 0.5	12
100Mb/s to	SFP-4GLXD1H	SM	1310nm	10	-6 to -1	-18 to 0.5	12
4.25Gb/s	SFP-4GLXD2H	SM	1310nm	20	-6 to -1	-18 to 0.5	12
	SFP-4GLXD4H	SM	1310nm	40	-1 to 4	-18 to 0.5	17

CWDM Dual Fiber Strands SFP Modules

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
100Mb/s	SFP-OC3SD12C##	SM	1470nm ~ 1610nm	120	-2 to 3	-34 to -10	32
(FE / STM-1 / OC-3)	SFP-OC3SD16C##	SM	1450nm ~ 1610nm	160	0 to 5	-35 to -10	35
————————	————————	————————	————————	————————	————————	————————	————————
1.25 Gb/s	SFP-ZXD4C##	SM	1270nm ~ 1610nm	40	-5 to 0	-24 to -1	19
(Gbe / FC)	SFP-ZXD8C##	SM	1270nm ~ 1610nm	80	0 to 5	-26 to -3	26
	SFP-ZXD12C##	SM	1270nm ~ 1610nm	120	0 to 5	-32 to -10	32
	SFP-ZXD16C##	SM	1470nm ~ 1610nm	160	2 to 6	-34 to -10	36
————————	————————	————————	————————	————————	————————	————————	————————
Multi-rate	SFP-2GZX4CD##	SM	1270nm ~ 1610nm	40	-2 to 3	-19 to 0	17
100Mb/s to 2.488 Gb/s	SFP-2GZX8CD##	SM	1270nm ~ 1610nm	80	0 to 5	-28 to -9	28
	SFP-2GZX12CD##	SM	1470nm ~ 1610nm	120	2 to 6	-30 to -10	32
————————	————————	————————	————————	————————	————————	————————	————————
Multi-rate	SFP-4GZXD4C##	SM	1310nm ~ 1610nm	40	-1 to 4	-18 to 0.5	17

## denotes wavelength range from 1270~1610nm.
27 = 1270nm, 29=1290nm, 31=1310nm, 33=1330nm, 35=1350nm, 37=1370nm, 39=1390nm, 41=1410nm, 43=1430nm, 45=1450nm, 47=1470nm, 49=1490nm, 51=1510nm, 53=1530nm, 55=1550nm,57=1570nm, 59=1590nm, 61=1610nm

C and L band DWDM Dual Fiber Strands SFP Modules

100GHz Spacing DWDM

50 GHz Spacing DWDM

100GHz Spacing DWDM

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
Multi-rate	SFP-ZXD8D##	SM	DWDM Wavelength	80	0 to 4	-26 to -10	26
100Mb/s to 1.25 Gb/s	SFP-ZXD12D##	SM	DWDM Wavelength	120	0 to 5	-30 to -10	30
————————	————————	————————	————————	————————	————————	————————	————————
Multi-rate	SFP-2GZXD8D##	SM	DWDM Wavelength	80	0 to 4	-28 to -10	28
100Mb/s to 2.67Gb/s	SFP-2GZXD12D##	SM	DWDM Wavelength	120	0 to 5	-29 to -9	29

## denotes wavelength Guide

## ITU Channel	Wavelength	Frequency (THz)	## ITU Channel	Wavelength	Frequency (THz)	## ITU Channel	Wavelength	Frequency (THz)
17	1563.86	191.7	17	1563.86	191.7	17.5	1563.45	191.75
18	1563.05	191.8	18	1563.05	191.8	18.5	1562.64	191.85
19	1562.23	191.9	19	1562.23	191.9	19.5	1561.83	191.95
20	1561.42	192	20	1561.42	192	20.5	1561.01	192.05
21	1560.61	192.1	21	1560.61	192.1	21.5	1560.2	192.15
22	1559.79	192.2	22	1559.79	192.2	22.5	1559.39	192.25
23	1558.98	192.3	23	1558.98	192.3	23.5	1558.58	192.35
24	1558.17	192.4	24	1558.17	192.4	24.5	1557.77	192.45
25	1557.36	192.5	25	1557.36	192.5	25.5	1556.96	192.55
26	1556.55	192.6	26	1556.55	192.6	26.5	1556.15	192.65
27	1555.75	192.7	27	1555.75	192.7	27.5	1555.34	192.75
28	1554.94	192.8	28	1554.94	192.8	28.5	1554.54	192.85
29	1554.13	192.9	29	1554.13	192.9	29.5	1553.73	192.95
30	1553.33	193	30	1553.33	193	30.5	1552.93	193.05
31	1552.52	193.1	31	1552.52	193.1	31.5	1552.12	193.15
32	1551.72	193.2	32	1551.72	193.2	32.5	1551.32	193.25
33	1550.92	193.3	33	1550.92	193.3	33.5	1550.52	193.35
34	1550.12	193.4	34	1550.12	193.4	34.5	1549.72	193.45
35	1549.32	193.5	35	1549.32	193.5	35.5	1548.91	193.55
36	1548.51	193.6	36	1548.51	193.6	36.5	1548.11	193.65
37	1547.72	193.7	37	1547.72	193.7	37.5	1547.32	193.75
38	1546.92	193.8	38	1546.92	193.8	38.5	1546.52	193.85
39	1546.12	193.9	39	1546.12	193.9	39.5	1545.72	193.95
40	1545.32	194	40	1545.32	194	40.5	1544.92	194.05
41	1544.53	194.1	41	1544.53	194.1	41.5	1544.13	194.15
42	1543.73	194.2	42	1543.73	194.2	42.5	1543.33	194.25
43	1542.94	194.3	43	1542.94	194.3	43.5	1542.54	194.35
44	1542.14	194.4	44	1542.14	194.4	44.5	1541.75	194.45
45	1541.35	194.5	45	1541.35	194.5	45.5	1540.95	194.55
46	1540.56	194.6	46	1540.56	194.6	46.5	1540.16	194.65
47	1539.77	194.7	47	1539.77	194.7	47.5	1539.37	194.75
48	1538.98	194.8	48	1538.98	194.8	48.5	1538.58	194.85
49	1538.19	194.9	49	1538.19	194.9	49.5	1537.79	194.95
50	1537.4	195	50	1537.4	195	50.5	1537	195.05
51	1536.61	195.1	51	1536.61	195.1	51.5	1536.22	195.15
52	1535.82	195.2	52	1535.82	195.2	52.5	1535.43	195.25
53	1535.04	195.3	53	1535.04	195.3	53.5	1534.64	195.35
54	1534.25	195.4	54	1534.25	195.4	54.5	1533.86	195.45
55	1533.47	195.5	55	1533.47	195.5	55.5	1533.07	195.55
56	1532.68	195.6	56	1532.68	195.6	56.5	1532.29	195.65
57	1531.9	195.7	57	1531.9	195.7	57.5	1531.51	195.75
58	1531.12	195.8	58	1531.12	195.8	58.5	1530.72	195.85
59	1530.33	195.9	59	1530.33	195.9	59.5	1529.94	195.95
60	1529.55	196	60	1529.55	196	60.5	1529.16	196.05
61	1528.77	196.1	61	1528.77	196.1

50 GHz Spacing DWDM

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
Multi-rate	SFP-ZXD8AD##	SM	DWDM Wavelength	80	0 to 4	-26 to -3	26
100Mb/s to 1.25 Gb/s	SFP-ZXD12AD##	SM	DWDM Wavelength	120	0 to 5	-30 to -6	30
————————	————————	————————	————————	————————	————————	————————	————————
Multi-rate	SFP-2GZXD8AD##	SM	DWDM Wavelength	80	0 to 4	-28 to -9	28
100Mb/s to 2.67Gb/s	SFP-2GZXD12AD##	SM	DWDM Wavelength	120	2 to 5	-31 to -9	33

## denotes wavelength Guide

## ITU Channel	Wavelength	Frequency (THz)	## ITU Channel	Wavelength	Frequency (THz)	## ITU Channel	Wavelength	Frequency (THz)
17	1563.86	191.7	17	1563.86	191.7	17.5	1563.45	191.75
18	1563.05	191.8	18	1563.05	191.8	18.5	1562.64	191.85
19	1562.23	191.9	19	1562.23	191.9	19.5	1561.83	191.95
20	1561.42	192	20	1561.42	192	20.5	1561.01	192.05
21	1560.61	192.1	21	1560.61	192.1	21.5	1560.2	192.15
22	1559.79	192.2	22	1559.79	192.2	22.5	1559.39	192.25
23	1558.98	192.3	23	1558.98	192.3	23.5	1558.58	192.35
24	1558.17	192.4	24	1558.17	192.4	24.5	1557.77	192.45
25	1557.36	192.5	25	1557.36	192.5	25.5	1556.96	192.55
26	1556.55	192.6	26	1556.55	192.6	26.5	1556.15	192.65
27	1555.75	192.7	27	1555.75	192.7	27.5	1555.34	192.75
28	1554.94	192.8	28	1554.94	192.8	28.5	1554.54	192.85
29	1554.13	192.9	29	1554.13	192.9	29.5	1553.73	192.95
30	1553.33	193	30	1553.33	193	30.5	1552.93	193.05
31	1552.52	193.1	31	1552.52	193.1	31.5	1552.12	193.15
32	1551.72	193.2	32	1551.72	193.2	32.5	1551.32	193.25
33	1550.92	193.3	33	1550.92	193.3	33.5	1550.52	193.35
34	1550.12	193.4	34	1550.12	193.4	34.5	1549.72	193.45
35	1549.32	193.5	35	1549.32	193.5	35.5	1548.91	193.55
36	1548.51	193.6	36	1548.51	193.6	36.5	1548.11	193.65
37	1547.72	193.7	37	1547.72	193.7	37.5	1547.32	193.75
38	1546.92	193.8	38	1546.92	193.8	38.5	1546.52	193.85
39	1546.12	193.9	39	1546.12	193.9	39.5	1545.72	193.95
40	1545.32	194	40	1545.32	194	40.5	1544.92	194.05
41	1544.53	194.1	41	1544.53	194.1	41.5	1544.13	194.15
42	1543.73	194.2	42	1543.73	194.2	42.5	1543.33	194.25
43	1542.94	194.3	43	1542.94	194.3	43.5	1542.54	194.35
44	1542.14	194.4	44	1542.14	194.4	44.5	1541.75	194.45
45	1541.35	194.5	45	1541.35	194.5	45.5	1540.95	194.55
46	1540.56	194.6	46	1540.56	194.6	46.5	1540.16	194.65
47	1539.77	194.7	47	1539.77	194.7	47.5	1539.37	194.75
48	1538.98	194.8	48	1538.98	194.8	48.5	1538.58	194.85
49	1538.19	194.9	49	1538.19	194.9	49.5	1537.79	194.95
50	1537.4	195	50	1537.4	195	50.5	1537	195.05
51	1536.61	195.1	51	1536.61	195.1	51.5	1536.22	195.15
52	1535.82	195.2	52	1535.82	195.2	52.5	1535.43	195.25
53	1535.04	195.3	53	1535.04	195.3	53.5	1534.64	195.35
54	1534.25	195.4	54	1534.25	195.4	54.5	1533.86	195.45
55	1533.47	195.5	55	1533.47	195.5	55.5	1533.07	195.55
56	1532.68	195.6	56	1532.68	195.6	56.5	1532.29	195.65
57	1531.9	195.7	57	1531.9	195.7	57.5	1531.51	195.75
58	1531.12	195.8	58	1531.12	195.8	58.5	1530.72	195.85
59	1530.33	195.9	59	1530.33	195.9	59.5	1529.94	195.95
60	1529.55	196	60	1529.55	196	60.5	1529.16	196.05
61	1528.77	196.1	61	1528.77	196.1

Single Fiber Strand SFP Modules

Standard

Industrial

Standard

Industrial

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	SFP-OC3SD21H	SM	1310TX 1550RX	20	-15 to -7	-28 to -8	13
	SFP-OC3SD22H	SM	1550TX 1310RX	20	-15 to -7	-28 to -8	13
	SFP-OC3SD41H	SM	1310TX 1550RX	40	-7 to -2	-32 to -8	25
	SFP-OC3SD42H	SM	1550TX 1310RX	40	-7 to -2	-32 to -8	25
100Mb/s	SFP-OC3SD61H	SM	1310TX 1550RX	60	-5 to 0	-33 to -10	28
(FE / STM-1 /	SFP-OC3SD62H	SM	1550TX 1310RX	60	-5 to 0	-33 to -10	28
OC-3)	SFP-OC3SD83H	SM	1490TX 1550RX	80	-5 to 0	-33 to -8	28
	SFP-OC3SD84H	SM	1550TX 1490RX	80	-5 to 0	-33 to -8	28
	SFP-OC3SD123H	SM	1490TX 1550RX	120	-2 to 3	-34 to -10	32
	SFP-OC3SD124H	SM	1550TX 1490RX	120	-2 to 3	-34 to -10	32
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-ESXD1H	SM	1310TX 1550RX	2	-11 to -3	-19 to -3	8
	SFP-ESXD2H	SM	1550TX 1310RX	2	-11 to -3	-19 to -3	8
	SFP-LXD11H	SM	1310TX 1550RX	10	-9 to -3	-20 to -3	11
	SFP-LXD12H	SM	1550TX 1310RX	10	-9 to -3	-20 to -3	11
	SFP-LXD13H	SM	1310TX 1490RX	10	-9 to -3	-20 to -3	11
	SFP-LXD14H	SM	1490TX 1310RX	10	-9 to -3	-20 to -3	11
	SFP-LXD21H	SM	1310TX 1550RX	20	-9 to -3	-20 to -3	11
	SFP-LXD22H	SM	1550TX 1310RX	20	-9 to -3	-20 to -3	11
	SFP-LXD23H	SM	1310TX 1490RX	20	-9 to -3	-20 to -3	11
1.25 Gb/s	SFP-LXD24H	SM	1490TX 1310RX	20	-9 to -3	-20 to -3	11
(Gbe)	SFP-LXD41H	SM	1310TX 1550RX	40	-5 to 0	-24 to 1	19
	SFP-LXD42H	SM	1550TX 1310RX	40	-5 to 0	-24 to 1	19
	SFP-LXD43H	SM	1310TX 1490RX	40	-5 to 0	-24 to 1	19
	SFP-LXD44H	SM	1490TX 1310RX	40	-5 to 0	-24 to 1	19
	SFP-LXD61H	SM	1310TX 1550RX	60	0 to 5	-26 to -3	26
	SFP-LXD62H	SM	1550TX 1310RX	60	0 to 5	-26 to -3	26
	SFP-LXD81H	SM	1310TX 1550RX	80	0 to 5	-26 to -3	26
	SFP-LXD82H	SM	1550TX 1310RX	80	0 to 5	-26 to -3	26
	SFP-LXD85H	SM	1550TX 1490RX	80	0 to 5	-26 to -3	26
	SFP-LXD86H	SM	1490TX 1550RX	80	0 to 5	-26 to -3	26
	SFP-LXD125H	SM	1550TX 1490RX	120	0 to 5	-31 to -10	31
	SFP-LXD126H	SM	1490TX 1550RX	120	0 to 5	-31 to -10	31
————————	————————	————————	————————	————————	————————	————————	————————
	SFP-2GLXD21H	SM	1310TX 1550RX	20	-5 to 0	-19 to -1	14
	SFP-2GLXD22H	SM	1550TX 1310RX	20	-5 to 0	-19 to -1	14
Multi-rate	SFP-2GLXD41H	SM	1310TX 1550RX	40	-2 to 3	-19 to 0	17
100Mb/s to	SFP-2GLXD42H	SM	1550TX 1310RX	40	-2 to 3	-19 to 0	17
2.67Gb/s	SFP-2GLXD85H	SM	1490TX 1550RX	80	0 to 5	-26 to -8	26
	SFP-2GLXD86H	SM	1550TX 1490RX	80	0 to 5	-26 to -8	26

Links

Home

About Us

Contact

Products

Transceivers

Cables

Accessories

Contact

View Map
