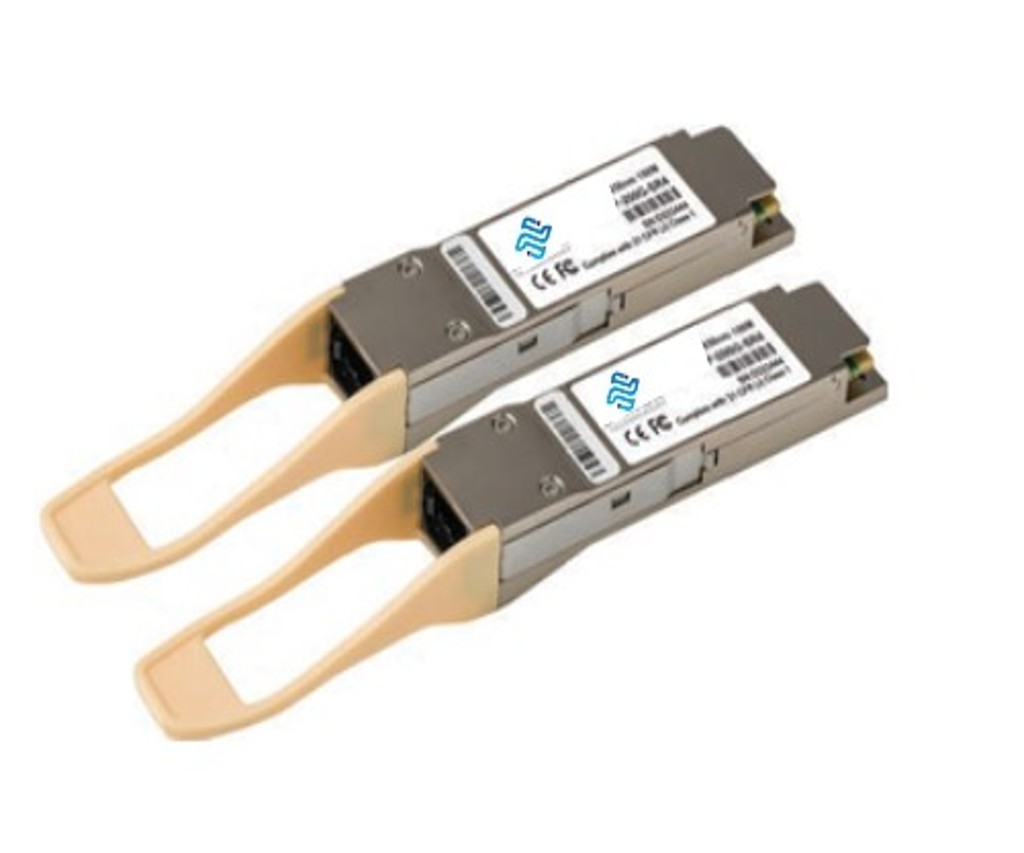

200G QSFP56

4 x 50Gbps transmission

Compact Quad Small Form Pluggable – QSFP56 Transceiver Modules up to 200Gbps

Supports applications such as:

Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA 2 years warranty with optional extended warranty up to 5 years

emperature Option : Standard Temperature – 0°C to +70°C

Fiber QSFP56 Modules

Standard

Data Rate	Part Number	Type	Wavelength	Distance (km)	TX Power (dBm)	RX Sens. (dBm)	Fiber Budget (dB)
	QSFP-200G-PSR4	MM	850nm	0.1	-6.5 to 4	-8.4 to 4	1.9
200Gb/s	QSFP-200G-FR4	SM	CWDM	2	-4.2 to 4.7	-8.2 to 4.7	4
	QSFP-200G-LR4	SM	LWDM	10	-3.4 to 5.3	-9.7 to 5.3	6.3
	QSFP-200G-ER4	SM	LWDM	40	0.0 to 6.5	-15.5 to -3	15.5
