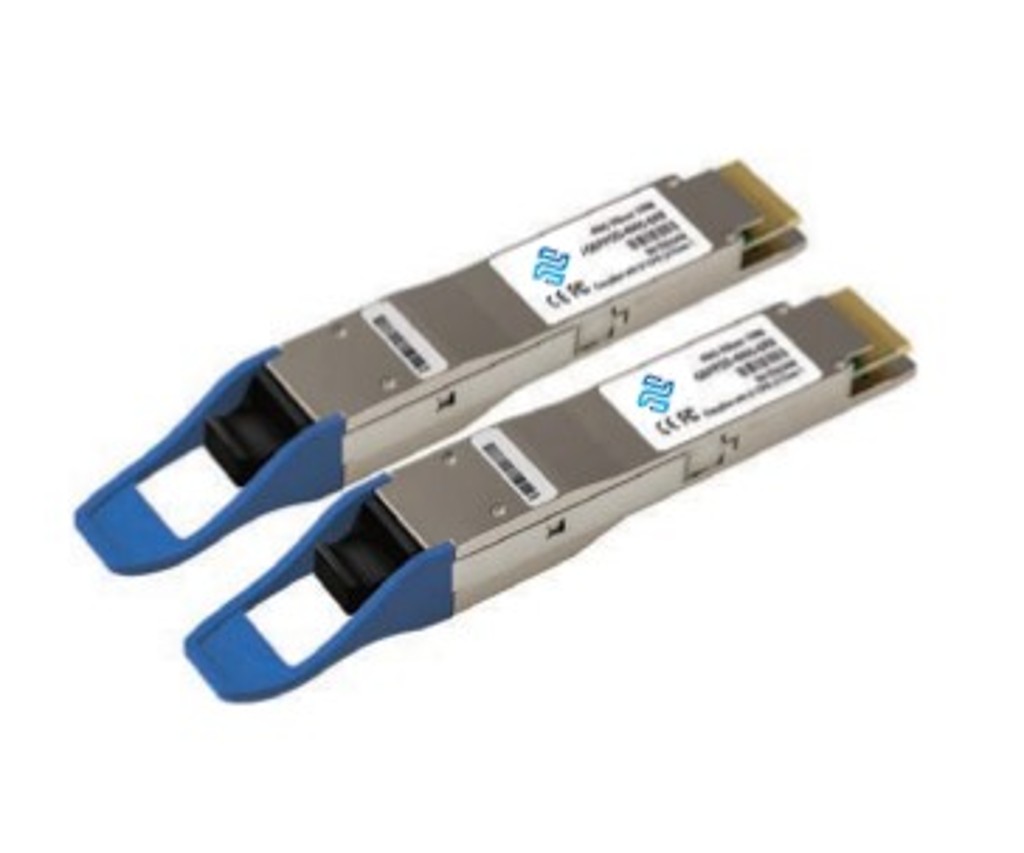

400G QSFP56-DD Module
4 x 100Gbps transmission
Applications
Compact Quad Small Form Pluggable – Double Density (QSFP56-DD) Transceiver Modules up to 400Gbps . Available with 8 x 50G and 4 x 100G options:
- 8 x 50Gbps SR8
- 4 x 100Gbps DR4
- 4 x 100Gbps FR1 (or DR4+)
- 4 x 100Gbps FR4
- 4 x 100Gbps LR1 (or DR4++)
- 4 x 100Gbps LR4
Supports applications such as:
- Data Centers
- Cloud Networks
Connector type: MPO-16(APC), MPO-12(APC), LC Compliant with IEEE 802.3bs, IEEE P802.3cm and 100G Lambda MSA The QSFP-DD has an advantage in that is more widely adopted and offers simpler backward compatibility 2 years warranty with optional extended warranty up to 5 years
Ordering Information
Temperature Option : Standard Temperature – 0°C to +70°C
400G QSFP56-DD Module
400G QSFP56-DD Module
Standard
Standard
Standard
| Data Rate | Part Number | Type | Wavelength | Distance (km) | TX Power (dBm) | RX Sens. (dBm) | Fiber Budget (dB) |
|---|---|---|---|---|---|---|---|
| QSFP-400G-PSR8 | MM | 850nm | 0.1 | -6.5 to 4 | -7.9 to 4 | 1.4 | |
| QSFP-400G-PDR4 | SM | 1310nm | 0.5 | -2.9 to 4 | -5.9 to 4 | 3 | |
| QSFP-400G-PFR1 | SM | 1310nm | 2 | -2.4 to 4 | -6.4 to 4 | 4 | |
| QSFP-400G-CFR4 | SM | CWDM | 2 | -3.3 to 3.5 | -7.3 to 3.5 | 4 | |
| QSFP-400G-PLR1 | SM | 1310nm | 10 | -1.4 to 4.5 | -7.7 to 4.5 | 6.3 | |
| 400Gb/s | QSFP-400G-CLR4 | SM | CWDM | 10 | -2.8 to 5.6 | -9.1 to 5.6 | 6.3 |
| QSFP-400G-LR8 | SM | LWDM | 10 | -2.8 to 5.3 | -9.1 to 5.3 | 6.3 | |
| QSFP-400G-ER8 | SM | LWDM | 40 | -0.6 to 5.6 | -18.6 to -4.4 | 18 | |
| QSFP-400G-ER4 | SM | LWDM | 30/40 | 0.4 to 6.5 | -16.5 to -2.5 | 16.9 | |
| QSFP-400G-ZR | SM | DWDM | 120 | -10.0 to -6.0 | -20.0 to 0 | 10 | |
| QSFP-400G-ZR+ | SM | DWDM | 480 | -10.0 to -6.0 | -20.0 to 0 | 10 | |
| QSFP-400G-HZR+ | SM | Tuneable | 120 | -5.0 to 3.0 | -24.0 to 12.0 | 19 |
