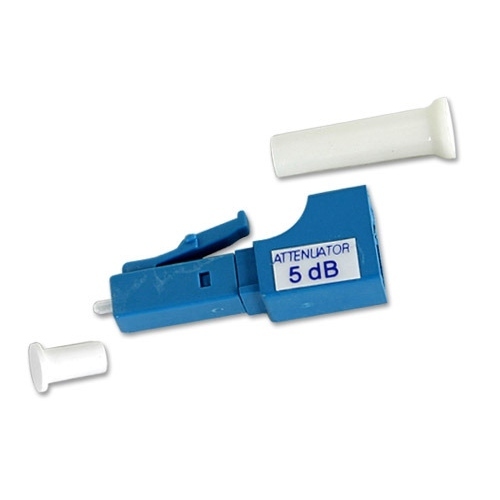

Attenuator LC
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is used to limit the optical power received by the photodetector to within the limits of the optical receiver
Features
- Low back reflection and Low PDL
- High precision attenuation value
- Precision control of attenuation range
- Wide attenuation range
- Precision ceramic ferrule
- FC, SC, ST, LC … optional
- Plastic or metal housing material
Applications
- Fiber optical telecommunication system
- Fiber optical CATV
- Fiber optical sensor
- Testing equipment
Specifications

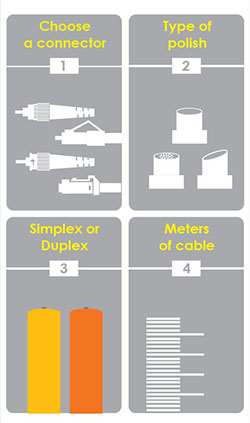

Ordering Information
Specifications
- Operating Wavelength: 1310/1550nm
- Attenuation Range: 1-10dB(1dB step), 15, 20, 25, 30dB
- Return Loss: PC:≥50dB UPC: ≥55dB APC: ≥60dB
- Attenuation Tolerance: ≤1.0 (11-30dB)
- Working Temperature: -25°C~+75°C
- Storage Temperature: -40°C~+ 85°C
Ordering Information
