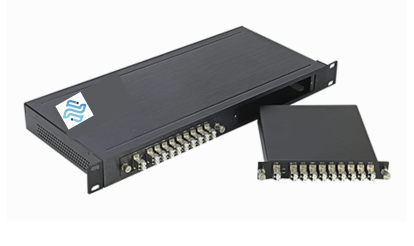

1 Channel Optical Add/Drop (4 ch. group) Specific Optical Specs

• Operating Wavelength: 1500nm ~ 1620nm
• Center Wavelength (λc): 1510nm ~ 1610nm
• Add/Drop Ch. Max Insertion Loss: 0.7 dB
• Pass Ch. Max Insertion Loss: 1.0 dB

1 Channel Optical Add/Drop (8 ch. group) Specific Optical Specs

• Operating Wavelength: 1460nm ~ 1620nm
• Center Wavelength (λc): 1470nm ~ 1610nm
• Add/Drop Ch. Max Insertion Loss: 0.7 dB
• Pass Ch. Max Insertion Loss: 1.0 dB

General Optical Specs(applies to all CWDM configurations)

• Insertion Loss Temperature Sensitivity (dB/°C): <0.005
• Wavelength Temperature Shifting (nm/°C): <0.002
• Polarization Dependent Loss (dB): <0.1
• Polarization Mode Dispersion (PS): <0.1
• Directivity (dB): >50
• Return Loss (dB): >45
• Maximum Power Handling (mW): 500

Environment

• Operating Temperature:-5°C~+75°C
• Storage Temperature:-40°C~85°C
Note: Above specification are for device without connector
