Outdoor use weather-proof Single port PoE extender- a quality product for PoE

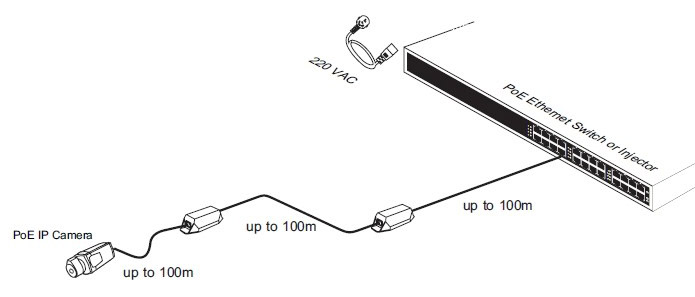

network point-to-point up to 500m. Works with PoE standards IEEE802.3af and IEEE802.3at. This device serves as a data switch port that is powered by PoE, and transmits it further on another 100m together with the data. Depending on the amount of power consumption. may use up to 4 extensions in the same chain, thereby increasing transmission distance up to 500m (1 class 82.3af, see table. “Maximum distance”)
PoE Device (PD) | PoE Injector or Switch | PoE Plus Injector or Switch |
IEEE802.3af class 1 no more than 4W | 400m (3pcs PoE Extender) | 500m (4pcs PoE Extender) |
IEEE802.3af class 2 no more than 6W | 300m (2pcs PoE Extender) | 400m (3pcs PoE Extender) |
IEEE802.3af class 0&3 no more than 12W | 200m (1pcs PoE Extender) | 300m (2pcs PoE Extender) |
IEEE802.3at no more than 22W | Not applicable | 200m (1pcs PoE Extender) |
Multiple PoE Extenders can be connected every 100 meters to obtain greater distances. The actual figures depend on operating conditions.
The range is over 24 AWG or heavier Cat-5e or Cat-6 cable except where specified.
Examples for medium power PoE Devices (that are PoE Class 2, or require under 6 watts)
| PoE Source | |||
| PoE switch (802.3af,Output voltages 50V) | 15W mid-span (802.3af,Output voltages 50V) | PoE+ switch (802.3at,Output voltages 50V) | 30W mid-span (802.3at,Output voltages 50V) |
| Maximum Distances | |||
| 300m | 300m | 400m | 400m |
Examples for full power PoE Devices (that are PoE Class 0 or 3, or require under 12 watts)
| PoE Source | |||
| PoE switch (802.3af,Output voltages 50V) | 15W mid-span (802.3af,Output voltages 50V) | PoE+ switch (802.3at,Output voltages 50V) | 30W mid-span (802.3at,Output voltages 50V) |
| Maximum Distances | |||
| 200m | 200m | 300m | 300m |
Examples for PoE+ Devices (that are PoE Class 4 that under 22 watts, or 802.3at compliant)
| PoE Source | |||
| PoE switch (802.3af,Output voltages 50V) | 15W mid-span (802.3af,Output voltages 50V) | PoE+ switch (802.3at,Output voltages 50V) | 30W mid-span (802.3at,Output voltages 50V) |
| Maximum Distances | |||
| Not applicable | Not applicable | 200m | 200m |
No. of channels:1
•Pass Through Data Rates:10/100/1000 Mbps half / full duplex
•PoE input
Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+)
•PoE output
Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
Output Power: up to 22W
•Indicators
Power indicator: PoE enabled
Network indicator: Link/Act
•Connectors:Shielded RJ-45, EIA 568A and 568B
•Network cables:Shielded category 5 (or higher)
•Case material:ABS plastic
•Dimensions:145mm x 60mm x 40mm
•Weight:0.090g
•Mounting:Wall of shelf
•Environment:Indoor
•Environmental Conditions
Operating Ambient Temperature: -40 to 45℃ @90%, Non-condensing
Storage Temperature: -40 to 70 @95%, Non-condensing
•Regulatory Compliance
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
RoHS Compliant, CE, FCC
•Electromagnetic:FCC Part15, Class B
